About the Butterfly Charger

About the Butterfly Charger

The charging behavior varies depending on the model and generation of the probe and charger. To understand what is normal behavior, first confirm the model of your Butterfly device, then reference the corresponding section below.

iQ3 Charging

The charger for the iQ3 is a magnetic contact charger. When the charger is placed close to the charge contacts on the probe, the charger should align and attach itself to the probe, and charging should begin. It does not matter what orientation the charger is connected to the probe - it can be attached with the cord facing the front or back of the probe. When the probe is charging, the LEDs will blink to indicate charge status. Four solid LEDs indicates the probe is fully charged.

iQ, iQ Vet, iQ+, and iQ+ Charging

The charger for the iQ, iQ Vet, iQ+, and iQ+ Vet is a wireless charger. The different models and generations of chargers, along with their respective charging behavior, can be seen in the table below.

The probe should be placed on the charger such that the Butterfly logo on its body aligns with the Butterfly logo on the charger itself.

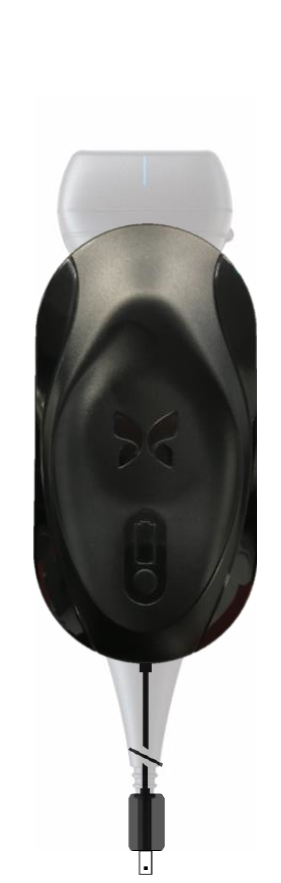

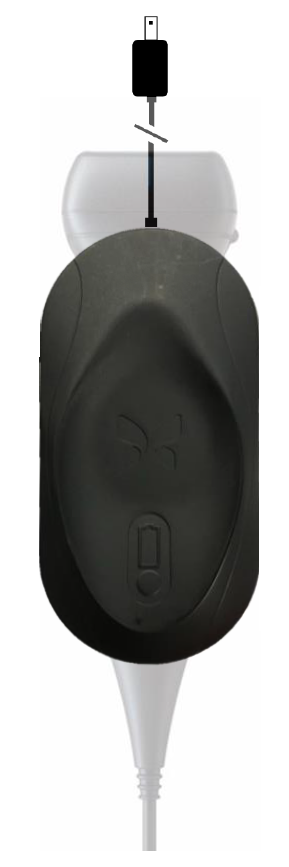

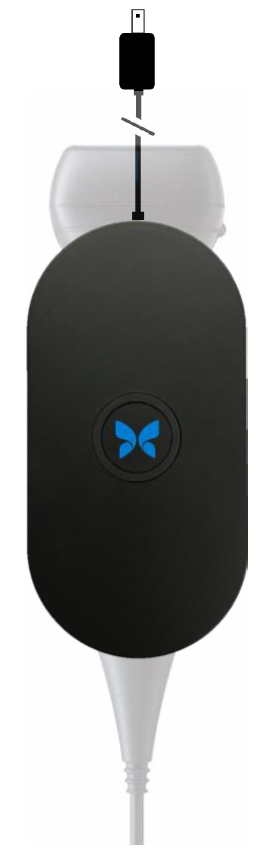

Probe Charging Pad


IQ


IQ+


IQ+

Probe Charger Status
No Probe ChargingState_NoProbe.png ChargingState_NoProbe.png ChargingState_NoProbe.png
Charging ChargingState_Charging.png ChargingState_Charging.png ChargingState_Charging.png
Error ChargingState_Error1white.png ChargingState_Error1white.png ChargingState_Error2white.png
Fully Charged ChargingState_FullyRedWhite.png ChargingState_FullyRedWhite.png ChargingState_FullyGreen.png



If you suspect the charger is not effectively charging the device, place another device that charges wirelessly on the charger. You can use another Butterfly iQ, iQ Vet, iQ+, or iQ+ Vet probe, an iPhone 8 or newer, or any other device that charges wirelessly.

If the charger does not charge another wireless device, then it is the source of the issue. Contact Butterfly Support for a replacement charger and include your shipping address in the message.

If the charger is able to charge other devices, it is possible the iQ probe is charging, but doesn't look like it is. Follow the instructions in the Resolving Charging Issues article.
